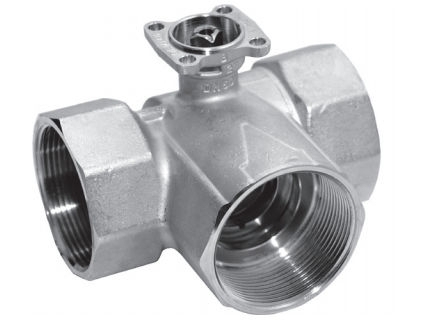

Belimo 3-WAY CHANGE OVER BALL VALVE

Changeover ball valve, 3-way, zero leakage

Technical specification

Type	3-way change-over ball valve, internal thread
Kvs	14 m³/h
Nominal size	DN 40
Rated pressure	PN 25
Connection	Rp 1 1/2" internal thread (ISO 7-1)
Media	Water, water with glycol up to max. 60% vol.
Medium temperature	-10...100 °C (may be limited by the actuator type)
Closing pressure Δps	500 kPa
Differential pressure Δpmax	350 kPa (200 kPa for low-noise operation)
Leakage rate	Leakage rate A, air-bubble-tight (EN 12266-1)
Angle of rotation	90°
Installation position	Upright to horizontal (in relation to the stem)
Housing	Brass body, nickel-plated
Closing element	Chrome-plated brass
Stem	Nickel-plated brass
Stem seal	O-ring EPDM
Valve seat	PTFE, O-ring EPDM
Length L	111 mm
Height H	50.5 mm
Weight (approx.)	1.2 kg
