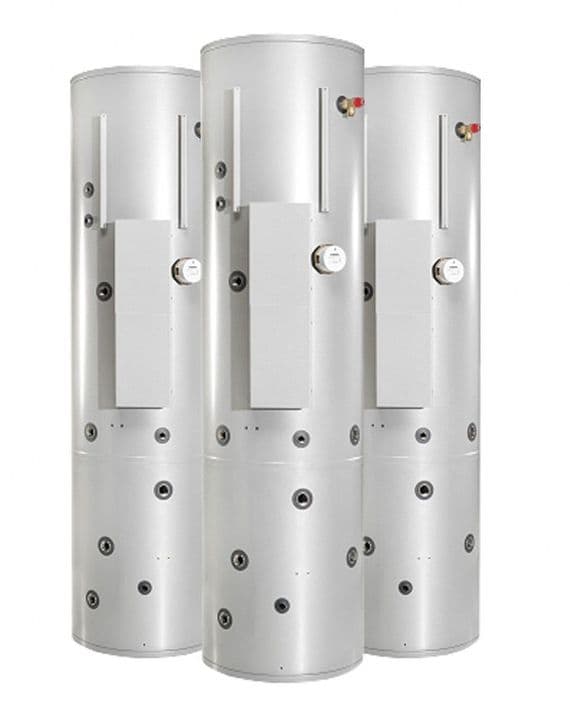

Joule Cyclone 250 L high-gain hot-water cylinder with 90 L buffer

Joule Cyclone 250 L high-gain hot-water cylinder with 90 L buffer.

Separate nominal storage volumes: 250 litres for domestic hot water and 90 litres for the buffer section.

Supplied as a bare combined cylinder and buffer vessel. This is not a fully pre-plumbed, wired or commissioned package.

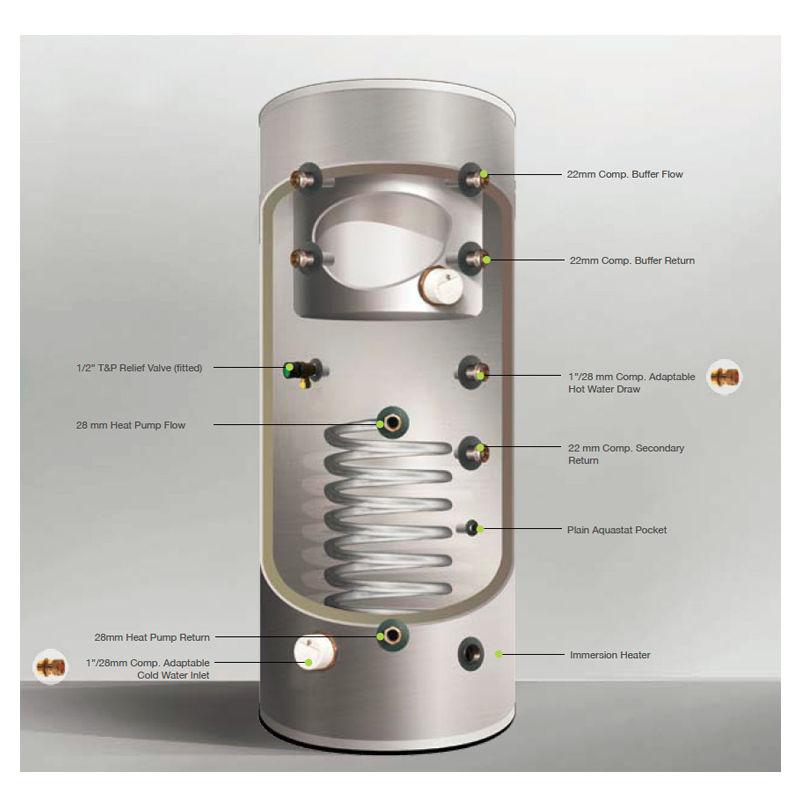

Includes a high-gain heat-pump coil for indirect domestic hot-water heating.

Manufacturer technical sheet: overall height 1950 mm; external diameter 600 mm; high-gain coil surface area 2.8 m². See the attached Joule 250/90 technical sheet, reference 80.340.TT.02.V02. Confirm the supplied revision and allow the required connection and service clearances before installation.
