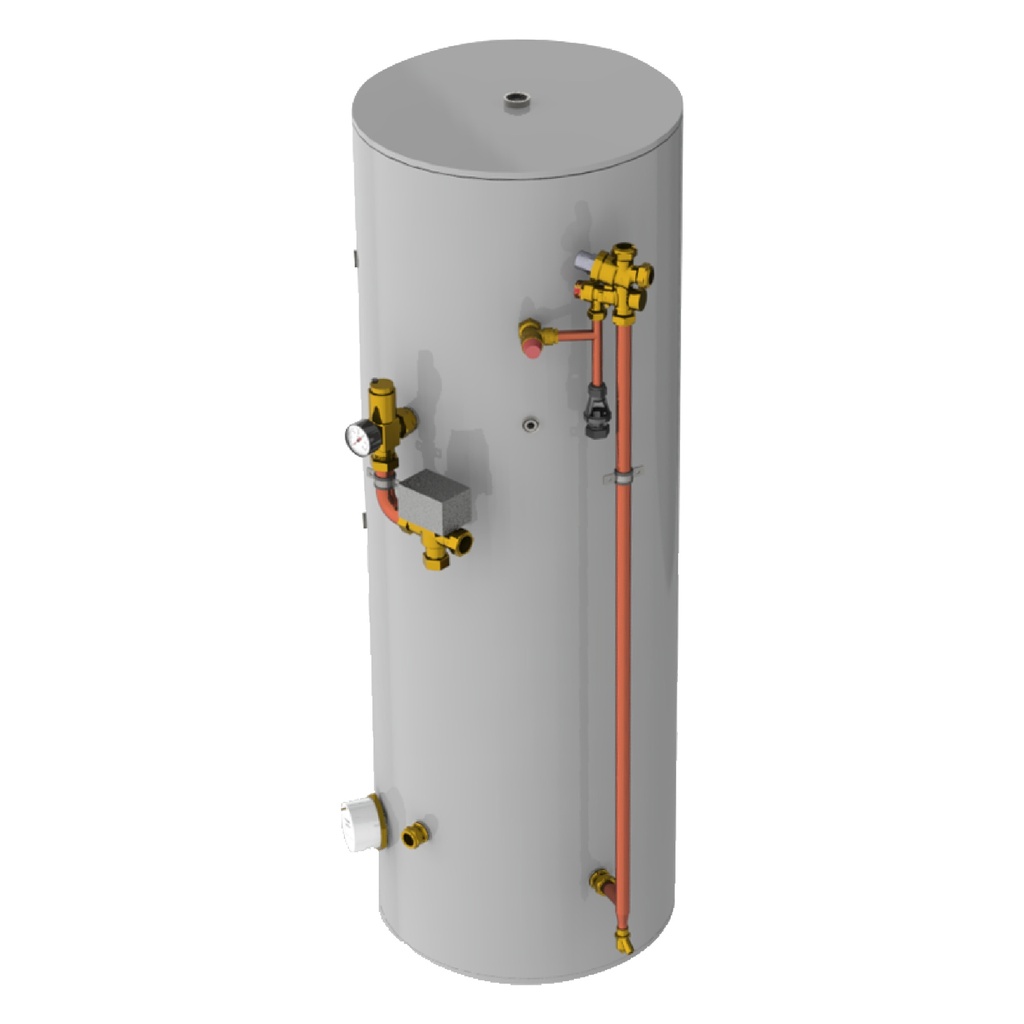

Joule Cyclone 170 L part-plumbed high-gain heat-pump cylinder - slim

Joule Cyclone 170 L part-plumbed high-gain heat-pump cylinder - slim. Nominal catalogue capacity: 170 litres.

Supplied with the standard G3 kit and a three-way valve partly installed onto the tank.

Underlying high-gain vessel: TCIMVH-0170SFB. Vessel body height: 1550 mm. External body diameter: 475 mm. Heat-pump coil surface area: 2.5 m².

These are vessel dimensions; allow additional space for the partly fitted valves, connections and servicing. See the linked manufacturer vessel specification and confirm installation clearances for your system.
