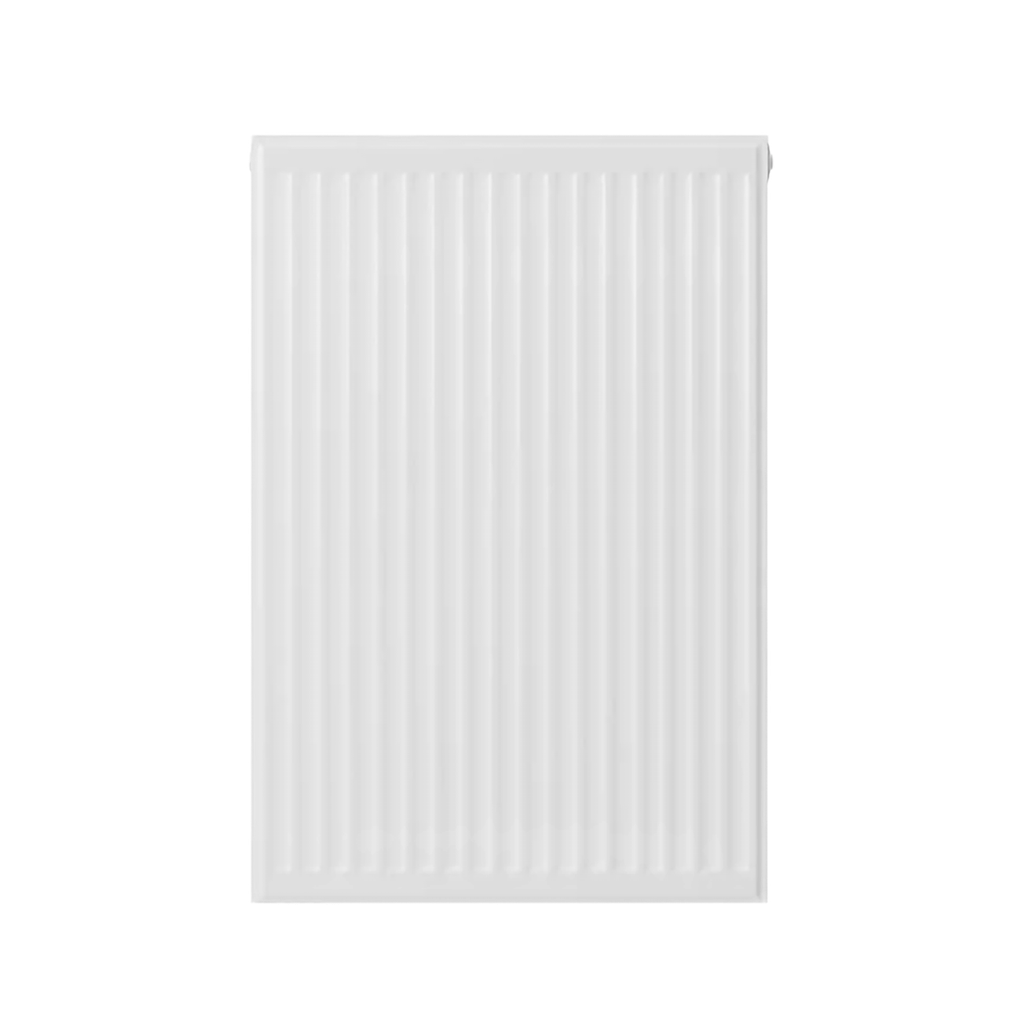

Stelrad COMPACT (700x1200-P+)

Stelrad Compact P+ 700 × 1200 mm horizontal steel radiator, with double panel, single convector construction and standard ½-inch connections.

Heating performance

• 630 W at 45/40/20°C — calculated from the EN 442 rated output using the manufacturer's coefficient.
• 946 W at 55/45/20°C — manufacturer's published ΔT30 output.
• 1,836 W at 75/65/20°C — manufacturer's published ΔT50 reference output.

Temperatures are flow / return / room. The 45/40/20°C figure is a calculated estimate, not a separate tested duty point. Select against the room heat loss and the intended system temperatures.

Dimensions and specification

• Height: 700 mm
• Length: 1200 mm
• Radiator depth: 77 mm
• Panel type: P+ — double panel, single convector
• Connections: ½ inch
• Manufacturer article: 143838
